These are instructions for drafting an off-shoulder dress sleeve pattern.
For an off-shoulder dress with front and back patterns, go to this link.
For the sleeve pattern, everything is pretty much the same, as for the front and back of the dress only the sleeve is shorter and narrower.

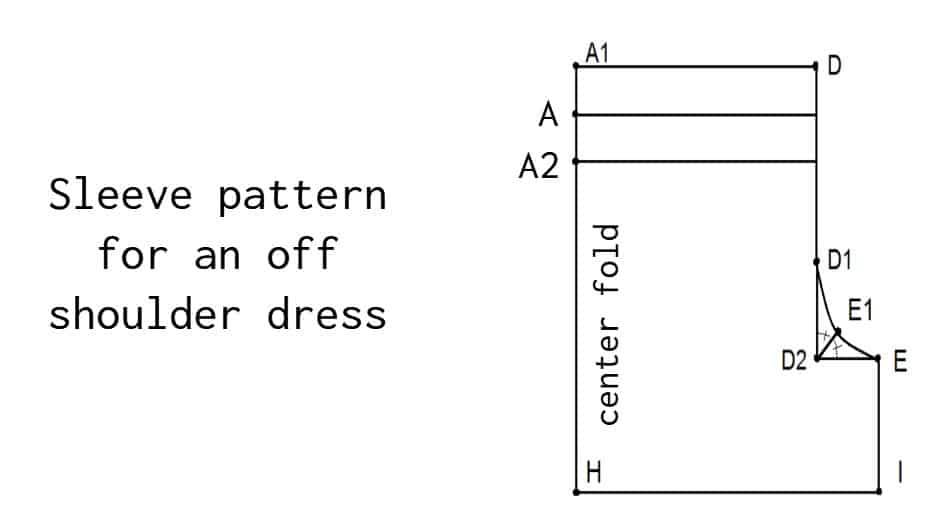

Draw a vertical line and mark 4 points on this line.
A1H is the length of the sleeve. Just measure it (the length you want) using a tape measure. So it will be different for everybody. I made mine 12 inches long for my dress.
An A1 is equal to A A2 and it is 1.5 inches for all sizes.
Line A1H is the center line and the grainline. Cut the pattern ON FOLD.
Draw a perpendicular to the line A A1 in point A1 and mark point D. Distance A1D is 7 inches for all sizes.
Draw two more of the same lines in points A and A2.
Draw a perpendicular line from point D and mark point D1 at a distance of 6 inches for all sizes.
Continue the line and mark point D2 at the distance of 3 inches for all sizes.
Draw a perpendicular line in point D2 and mark point E at a distance of 2 inches.
Draw a perpendicular line in point E. Line EI is parallel to line A1H. Draw a perpendicular line in point H. Mark point I. The distance HI is 7 inches plus 2 inches equals 9 inches.
Distance EI = A1H minus 9 inches (it’s 3 inches in my case and in your case too if you made line A1H equal 12 inches).
Draw line D2E1 = 1 inch. The line divides the 90 degrees corner in half.
Connect points D1E1E with a curved line.
Seam allowances are included and they are about ¼ inch.
